MACHINE DESCRIPTION

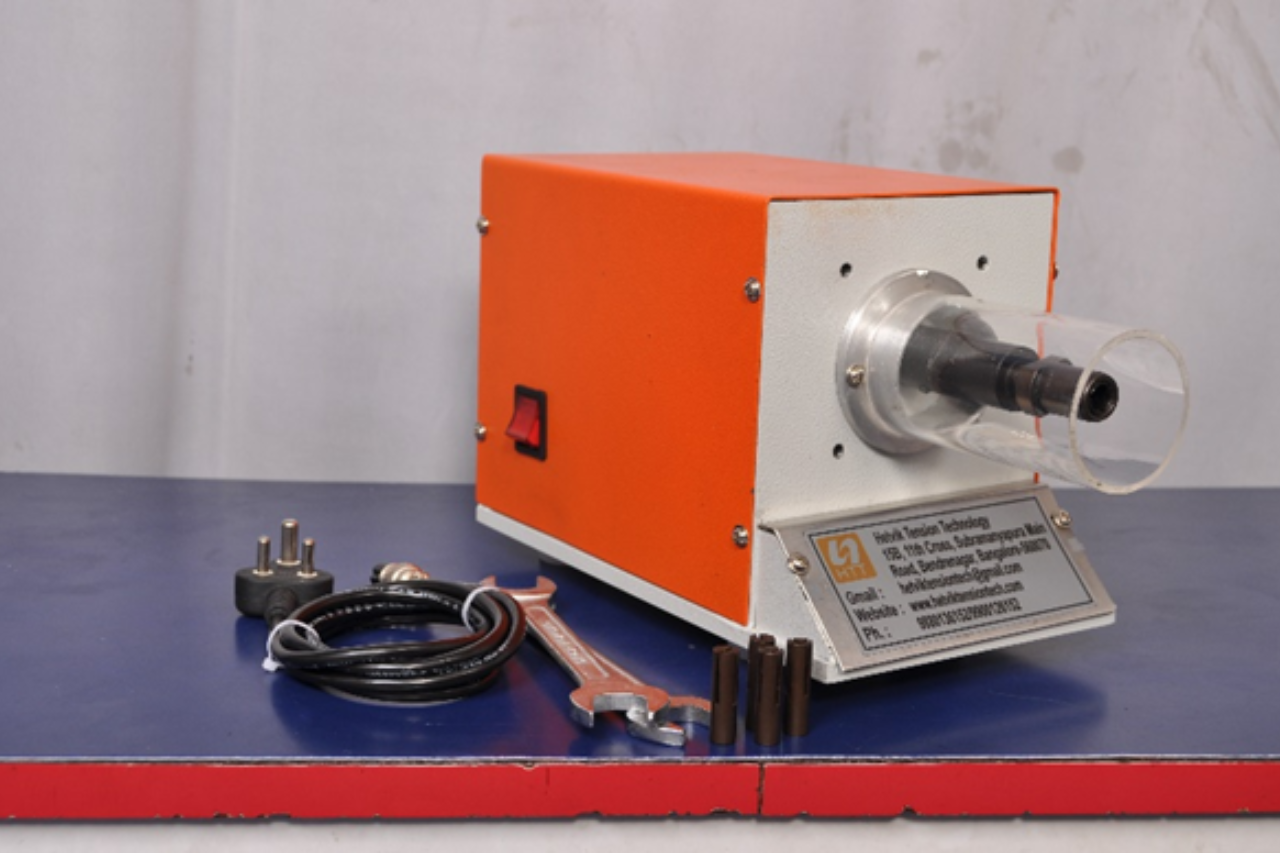

Bench Wire Stripper will remove film insulations including enamel, Formvar, ML, armored poly-thermalize, epoxy and more from round wires. These strippers use a rotating insert to strip insulation from the surface of round magnet and enamel wire and are ideal for stripping electronic components such as bobbins, coils, and toroid’s. Inserts are available in six different styles depending on application. Flat face inserts allow for stripping flush to the work piece, concave face inserts permit easy wire entry, and bullet nose inserts are used for stripping in confined areas.
| Technical Specification HTT-BB-05-50 | |
| Parameter | Specification |
| Model | HTT-BB-05-50 |
| Brand | Hetvik Tension Technology |
| Round Wire | 0.5mm To 5mm |
| Automation Made | Semi-Automatic |
| Striping Length | 5mm To 70mm |
| Collet | Round Collet |
| Motor Speed | 3000 RPM |
| Power Supply | 220V, 50Hz, Single Phase |
| Dimension | 200x200x300mm |
| Machine Weight | 15 Kg |
| Warranty | 6 Month from the Date of Supply |
