MACHINE DESCRIPTION
This type of Finger Collet tool is commonly used in electronics and electrical industries for manufacturing and repair applications. Speed Adjustment Steeples Speed regulation

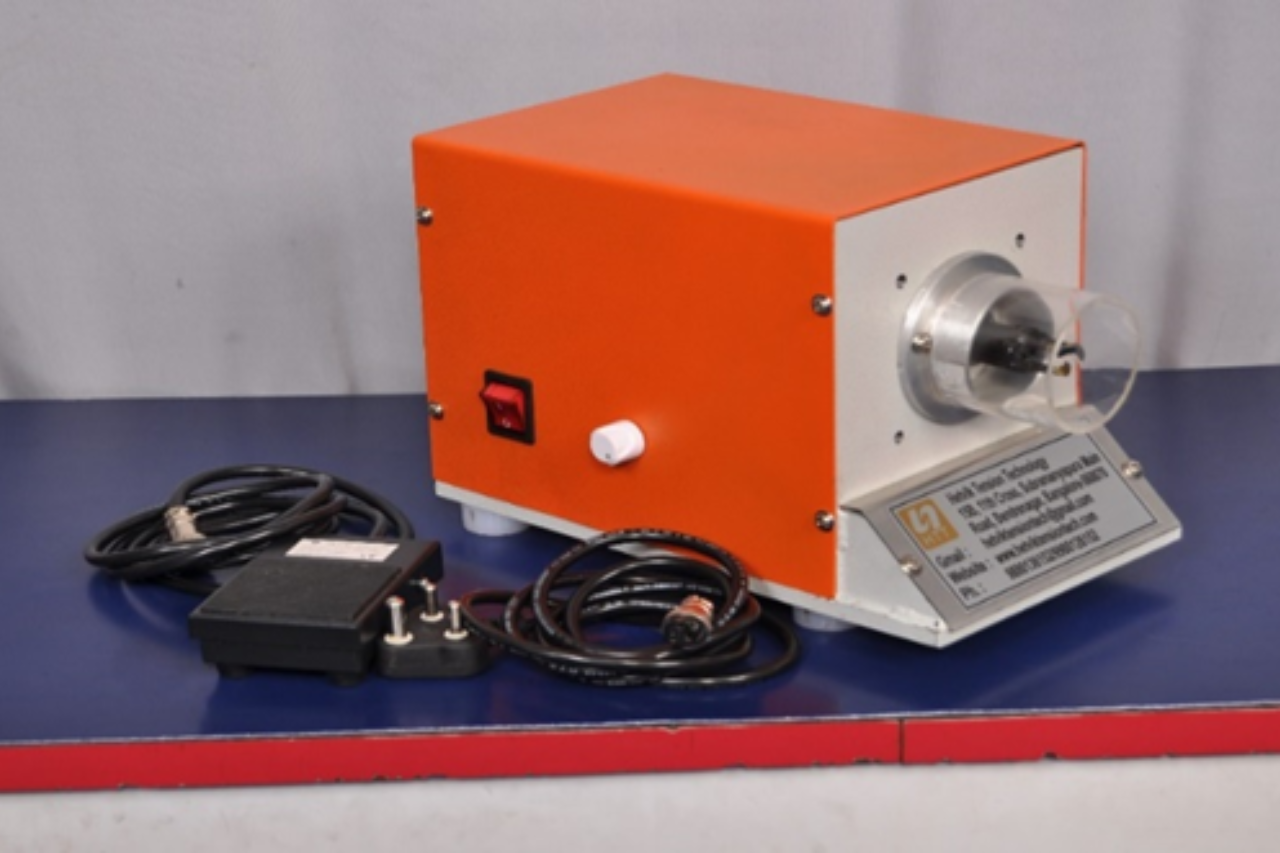

The Finger Type Enamel Wire Stripper is an electrically driven stripping machine with Foot Pedal operation for varnished wires. It consists of a motor unit and a knife head. The knife head is equipped with 3 carbide blades. The blades are closed by rotation (centrifugal force).The speed is regulated via a controller and thus the pressing force of the blades is adjusted for every individual material thickness. The working piece had to be inserted between the non-operating blades – switch on the Finger Type Enamel Wire Stripper (using the red thumb bottom) then draw out the stripped wire.
| Technical Specification HTT-BP-05-30 | |
| Parameter | Specification |
| Model | HTT-BP-03-30 |
| Brand | Hetvik Tension Technology |
| Round Wire | 0.5mm To 3mm |
| Automation Made | Semi-Automatic |
| Striping Length | 10mm To 50mm |
| Collet | Finger Collet |
| Motor Speed | 6000 RPM |
| Power Supply | 220V, 50Hz, Single Phase |
| Dimension | 200x200x300mm |
| Machine Weight | 15 Kg |
| Warranty | 6 Month from the Date of Supply |
