MACHINE DESCRIPTION
- Assembled wire wheel (wire roller): Applicable for reasonable guiding of various enamelled Wires and silks. The middle ceramic coil is made of precise ceramic and matched with high-speed
- The groove is polished to Ra0.2. Baffles in both sides can prevent the enamelled wire to Jump out of the groove during winding and the winding tension can be maintained in a stable manner.
PRODUCT FEATURES:
- Wire groove :
- Material : AL20395%
- Hardness :
- Roughness fine polishing above Ra0.2.
- Original bearing from Japan
- POM Plastic Sheeting

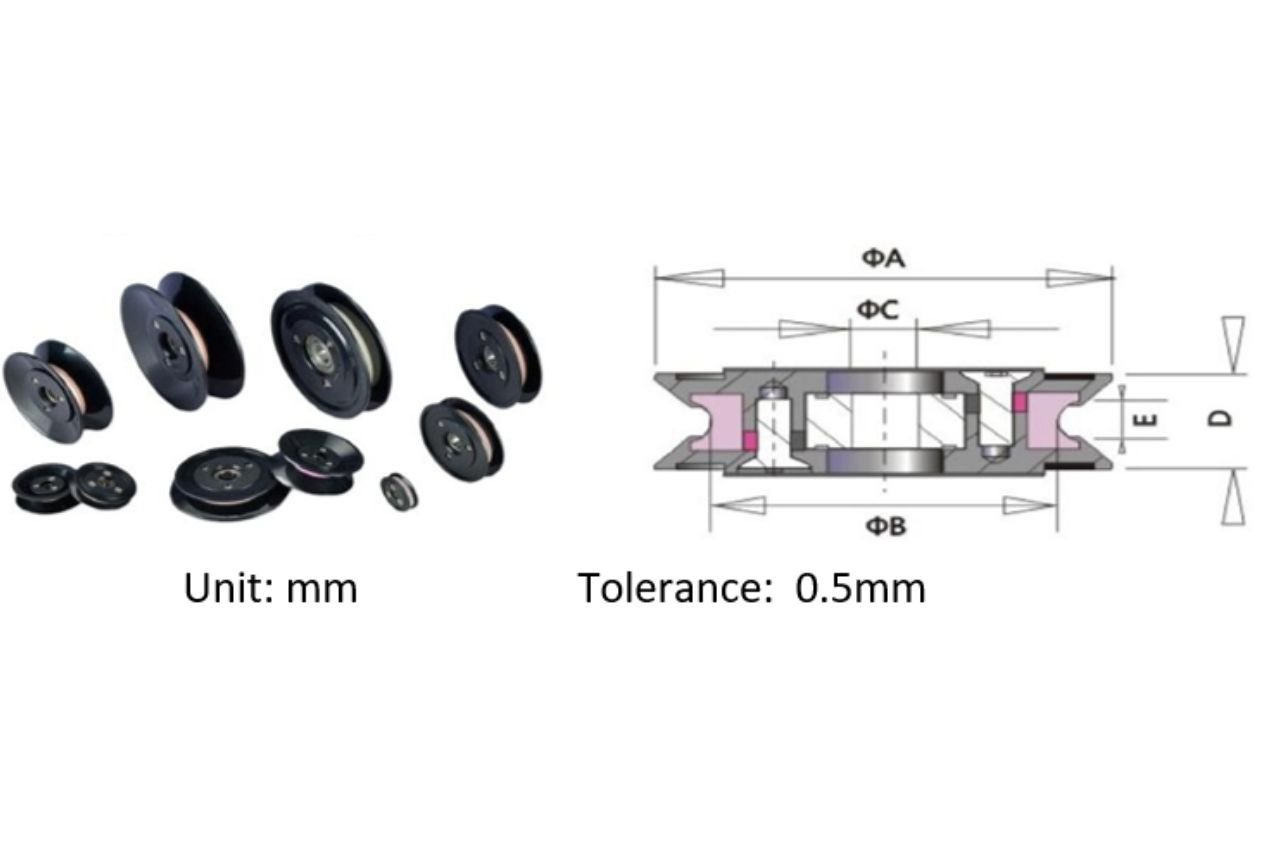

| Technical Specification | |||||
| Modal | A | B | C | D | E |
| CR1001 | Dia 10mm | Dia 8mm | Dia 3mm | 4.8mm | 3mm |
| CR1002 | Dia 11.5mm | Dia 10mm | Dia 4mm | 6.4mm | 4mm |
| CR1003 | Dia 14mm | Dia 10mm | Dia 3mm | 10mm | 3mm |
| CR1004 | Dia 10mm | Dia 8mm | Dia 4mm | 15mm | 4mm |
| CR1005 | Dia 7.5mm | Dia 6mm | Dia 4,5,6mm | 10mm | 6mm |
| CR1006 | Dia 10.6mm | Dia 7.3mm | Dia 8,10,12mm | 13mm | 7mm |
| CR1007 | Dia 16.5mm | Dia 13mm | Dia 6,8mm | 18mm | 6mm |
| CR1008 | Dia 27mm | Dia 15mm | Dia 10,12mm | 15mm | 9mm |
| CR1009 | Dia 20mm | Dia 14mm | Dia 8mm | 25mm | 9mm |
| CR1010 | Dia 21.5mm | Dia 14mm | Dia 10mm | 29mm | 6mm |
