MACHINE DESCRIPTION

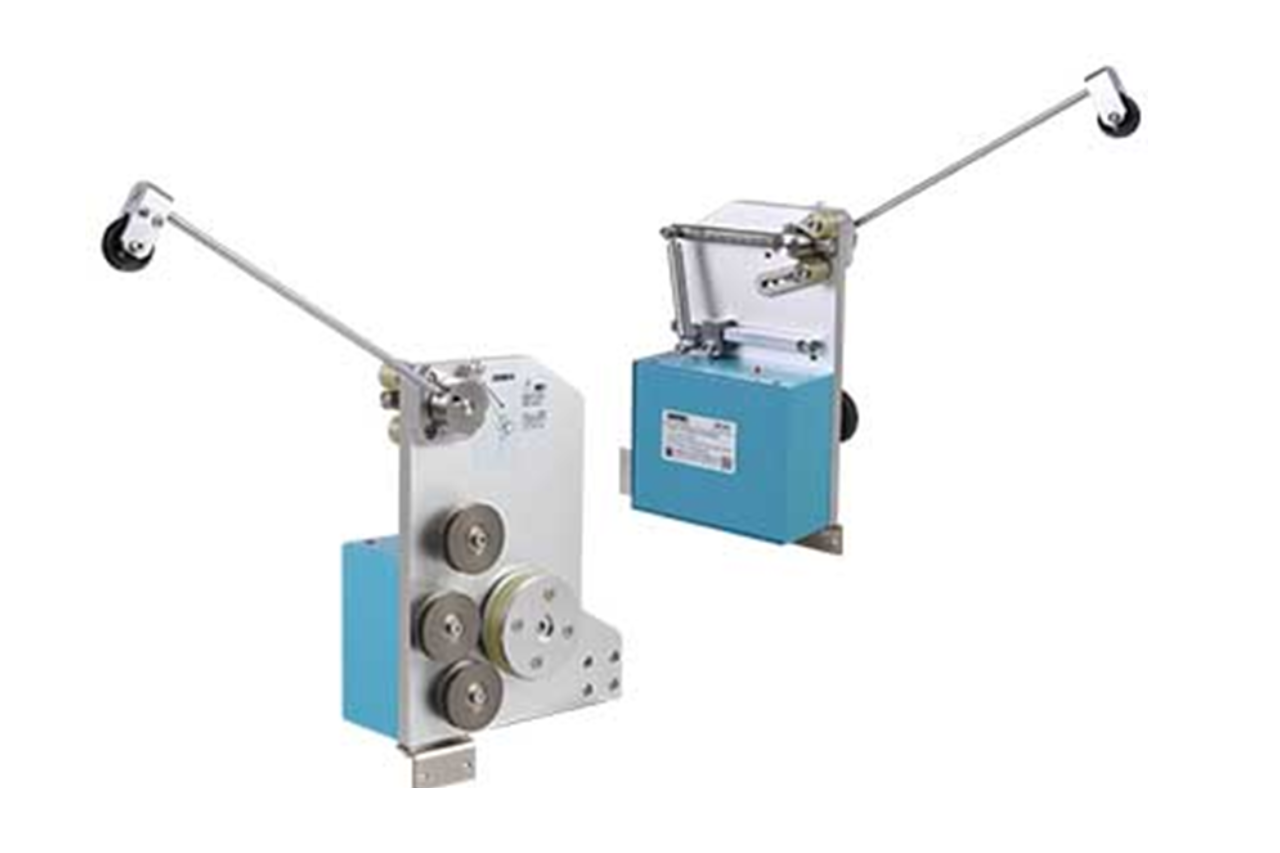

Product Name: ETA-100/LR/RD Series
ETA series electronic tension can realize tension closed-loop control, and the automatic control accuracy is as high as ±2% of the full scale. It also has a variety of tension setting functions, which can quickly change the output tension with the switching of the input signal (its output value is equal to the corresponding set value)
| Technical Specification | ||
| Parameter | Specification | |
| Model | TENSION SCOPE (GRAMES) | WIRE DIAMETER (mm) |
| ETA-100/LR/RD | 10g-100g | 0.04-0.12 |
| ETA-200/LR/RD | 15g-200g | 0.06-0.16 |
| ETA-300/LR/RD | 30g-300g | 0.08-0.25 |
| ETA-500/LR/RD | 60g-500g | 0.12-0.35 |
| ETA-1000/LR/RD | 100g-1000g | 0.15-0.450 |
| ETA-1500/LR/RD | 150g-1500g | 0.2-0.5 |
| ETA-2000/LR/RD | 200g-2000g | 0.3-0.60 |
ELECTRONIC TENSIONER (ETA SERIES)

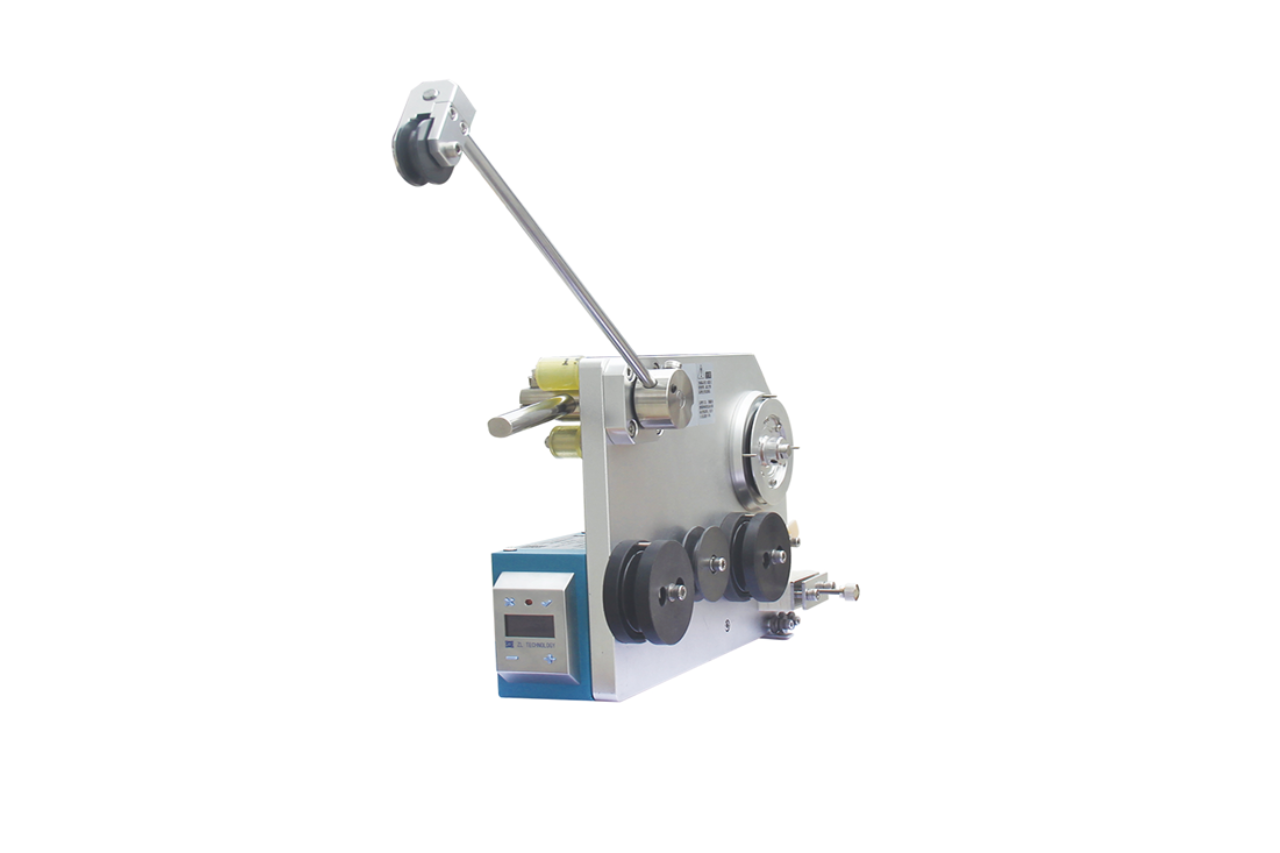

Product Name: ETA-100-B/BD Series
ETA series electronic tension can realize tension closed-loop control, and the automatic control accuracy is as high as ±2% of the full scale. It also has a variety of tension setting functions, which can quickly change the output tension with the switching of the input signal (its output value is equal to the corresponding set value)
| Technical Specification | ||
| Parameter | Specification | |
| Model | TENSION SCOPE (GRAMES) | WIRE DIAMETER (mm) |
| ETA-100/B/BD | 10g-100g | 0.04-0.12 |
| ETA-200/B/BD | 15g-200g | 0.06-0.16 |
| ETA-300/B/BD | 30g-300g | 0.08-0.25 |
ELECTRONIC TENSIONER (ETA SERIES)

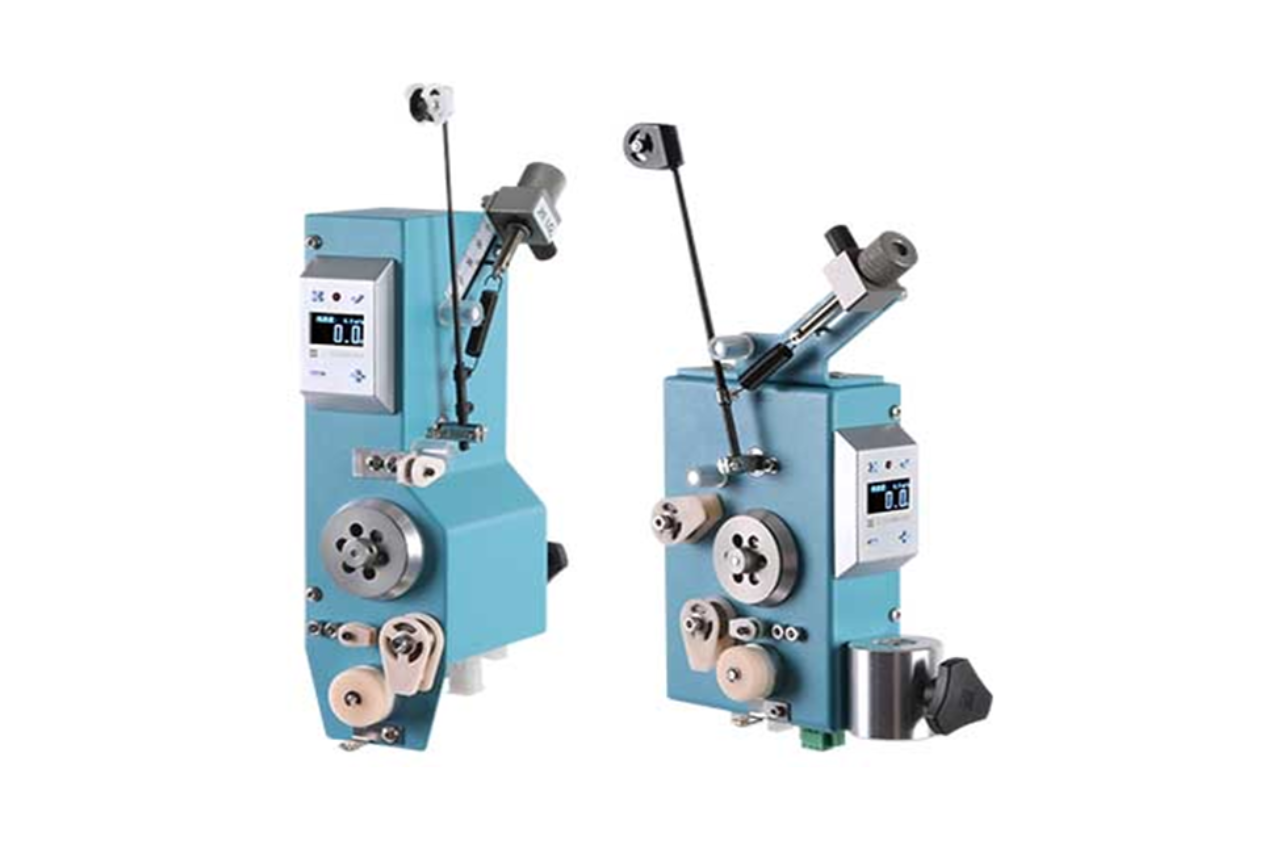

Product name:ETA series Thick wire electronic tensioner
The tension is controlled by the excitation current, and the automatic control accuracy can reach ±2%. The tension is stable and can adapt to high-speed winding, and it has a tension closed-loop control function.A variety of tension setting functions can quickly change the output tension
| Technical Specification | ||
| Parameter | Specification | |
| Model | TENSION SCOPE (GRAMES) | WIRE DIAMETER (mm) |
| ETA-2000L-R/RD | 200g-2000g | 0.2-0.6 |
| ETA-5000L-R/RD | 800g-5000g | 0.4-1.2 |
ELECTRONIC TENSIONER (ETD SERIES)

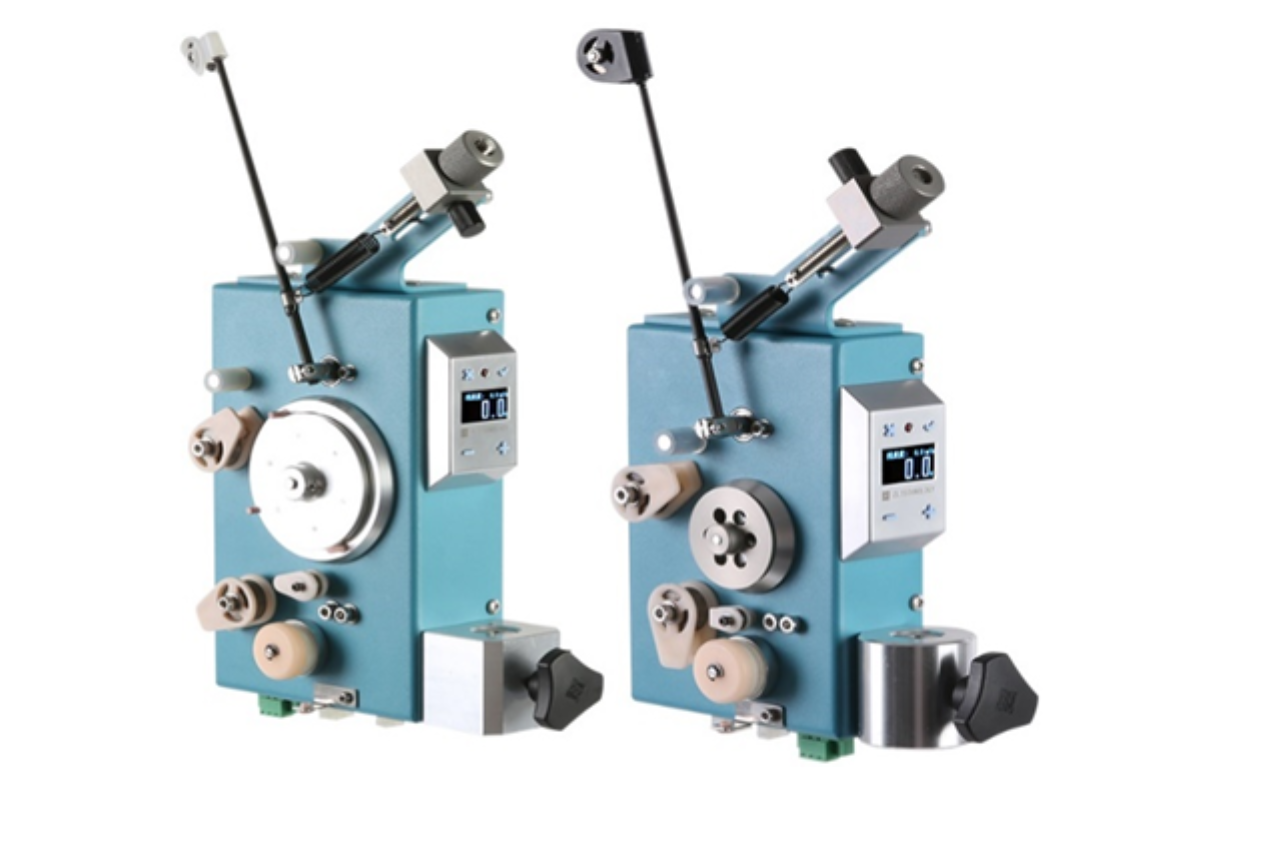

Product Name: ETD series electronic tensioner
The tension can be changed by adjusting the current, and the reverse tension can be changed by adjusting the slider. It has its own percentage control, the reverse tension is stronger, and it has an LED display.
| Technical Specification | ||
| Parameter | Specification | |
| Model | TENSION SCOPE (GRAMES) | WIRE DIAMETER (mm) |
| ETD-2000 | 200g-2000g | 0.2-0.6 |
| ETA-5000 | 800g-5000g | 0.4-1.2 |
| ETA-8000 | 950g-8000g | 0.4-1.5 |
