Machine description

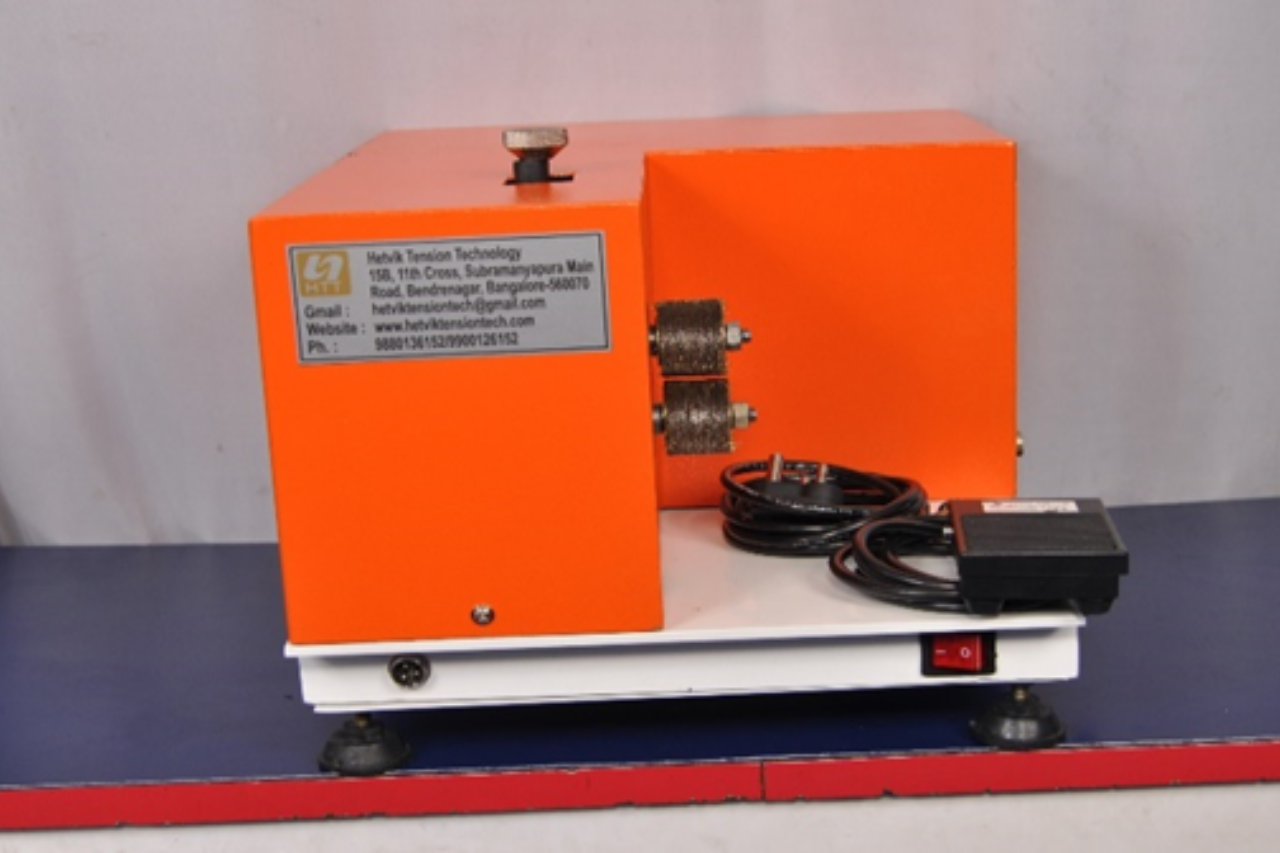

Semi-automatic enamel wire paint stripping machine, enamel wire stripping machine can effectively remove any hard insulating paint, enamel paint, ML, Isonel, etc. on the wire surface without damaging the copper (aluminium) wire itself.
This machine uses two high-speed rotating SS Copper wheels to strip enamelled wires. One machine is suitable for different wire sizes.
Suitable for Flat Wires, Round wires, and can also handle multiple enamelled wires.
The operation is simple and the stripping effect is good.
| Technical Specification HTT-1030 | |
| Parameter | Specification |
| Model | HTT-MS-1030 |
| Brand | Hetvik Tension Technology |
| Round Wire | 0.5mm To 6mm |
| Flat Wire | Up to 6mm Strength and 20mm width |
| Striping Length | 3mm To 100mm |
| Brush Type | SS Copper Wheel Dia 35mm |
| Motor Speed | 3000 RPM |
| Power Supply | 220V, 50Hz, Single Phase |
| Dimension | 550x450x350mm |
| Machine Weight | 45 Kg |
| Warranty | 6 Month from the Date of Supply |
